RISC-V : Bare Metal OS : 3 User Applications

 Intro

We have some basic capabilities in our supervisor now and we can turn our attention to user applications.  We can already run multiple independent processes with their own registers and stack.  We need a few more features to be able to run user applications as processes within our OS.

Firstly we need a virtual address mechanism so that each process/application can have an address space.  The same virtual addresses can be used in multiple applications but these will map to different physical addresses so that applications dont interfere with each other.

Secondly we need a mechanism for creating and running user applications.  Our applications will be written in C and the compiled executables will be loaded at the same time as the kernel.

Finally we need the ability to switch between supervisor mode and user mode so that applications dont have the capability to interfere with each other or the kernel.

Virtual Memory

Hardware architectures incorporate methods to implement virtual memory within their specification.  With 32-bit addresses from
0x0000-0000 to 0xffff-ffff each program can have a 4GB virtual address space.  The physical address space may be much smaller.
Processor hardware (not the Operating Syestem) provides the ability to translate virtual addresses  to physical addresses.

This implementation uses the 32-bit RISC-V implementations called Sv32.
Memory is divided into 4KB pages.  Virtual addresses are mapped to physical memory using a two level page table.
The first level page table contains 1024 4 byte entries pointing to upto 1024 second level pages.
This structure allows upto 1024x1024= 1M pages  which equates to 4GB virtual memory.
If the kernel+data starts at 0x8000-0000 and is 2MB in size the first level page table will just have the 512th entry completed pointing to a single second level page containing entries for 2048 data pages.

Page table entries are setup using the map_page function which looks at a data page's virtual address to determine the associated 1st level table entry. If this is zero, it sets up a new 2nd level page.  It then puts a pointer to the data page's physical address in the table.
In this way Page Table nodes are setup for each page in a process.

In our implementation we use virtual addresses for the kernel which are the same as physical addresses.  This allows kernel programs to work regardless of whether virtual addressing is on or off.
When we create a process we must map all the kernel pages into the table so that they can be accessed by the process.
We must also put the pointer to the start of the page table into our process structure.

Now comes the magic.  When we context switch to a new process we simply change the satp  (supervisor address translation and protection)  register to the appropriate page table.  Now the processor will automatically translate the processes virtual addresses to actual physical addresses using the page table.
Note that the sfence instructions ensure that writing the new satp is completed as a single operation without interruption.

This is awesome 😁😁😁😁

Application

I confess I got a bit lost setting up the application, partly because the instructions aren't so clear and partly because my attempt didn't work.

First we set up a basic program user.c which has a function start. The linker specifies that the program starts at 0x1000000 and that start is the entry point.  The start function sets up the stack, calls main to carry out functions then calls exit which is initially an infinite loop.

main is defined in the file shell.c and initially it just loops forever.

The build script is full of weird magic.  First we build the application as shell.elf.  Then we convert it from elf format to a raw binary and THEN we convert it into a format which can be embedded into the kernel.
Finally the kernel is build, including shell.bin.o which is our application.

Run Application In User Mode

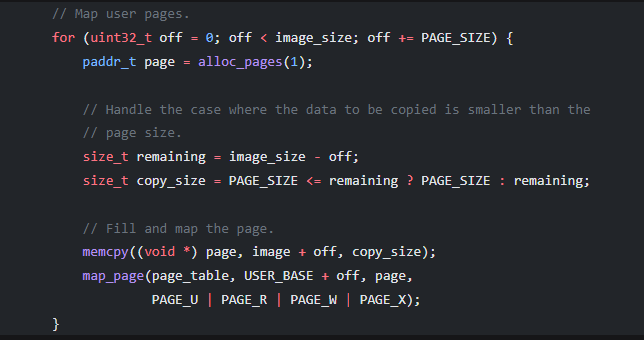

Now we have the program we want to run appended to the kernel, we can create a process by  allocating memory for the program, copying the program into the memory pages and adding page table entries.  The jiggery pokery in the build script gives us the information we need regarding the program location within the kernel.  We now have a process containing our application ready to run.

Finally we need to switch to user mode which is accomplished with the privileged sret instruction.

This is executed in the user_entry function so is executed as soon as the context switch to the user program is completed.  The sepc register contains the program counter which sret jumps to.

Our first program is pretty dull, we can only look at memory and status registers to see what it is doing.

Of course in user mode we cant read/write from/to the console as that is the supervisors role.  We need to be able to execute system calls.

System Calls

System calls are familiar from assembly language programming.  You ask the kernel to do some work for you.  In this example, we ask the kernel to read a character from the console and return it in an integer varaible.

You specify a number of parameters then issue an ecall instruction.  ecall causes an exception which the kernel must handle.

In this case the only argument we pass is  the ecall identifier SYS_GETCHAR

Within the kernel, the exception causes the  handle_trap function to be executed.
By checking CSRs handle_trap determines that an ecall is responsible for the exception and invokes handle_syscall.

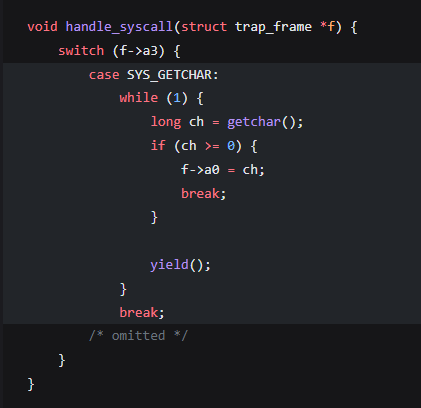

 handle_syscall looks at the identifier, and sees that it is being requested to read a character from the console.  Using its own getchar() function it makes an SBI call to see whether a console character is available so that it can return it to the user.  Note that the function loops until a character is available.  After each check it yields so that other kernel processes can take their turn.

User Shell

Finally we enter familiar territory.  We can write a C program to display a prompt, get some input and display a console message.

Outro

The tutorial has a couple more chapters demonstrating disk i/o and a simple file system.  These are the essential next step if you are writing a disk Operating System.  However I have learnt so much on this journey that I will stop here.

There is a complete working copy of "OS in 1,000 lines" on github which I have tried out.
It gives you a nice warm feeling to be able to execute commands from the shell, even though they are very basic.

Looking back I have found out so many new concepts:

• QEMU  provides a pretty realistic RISC-V environment for investigations.  It needs openSBI to initialise the "virtual hardware" for us.
• openSBI is another level of software to consider, it runs in M-mode (machine) and does all the hardware specific (memory, interfaces, peripherals) initialisation for us.
• openSBI calls allow programs running in S-mode (supervisor) to use hardware functions such as writing to the console.
• We can write our Operating System in C.  The occasional assembly language instructions we need to use for privileged instructions and initialisation can easily be specified using inline assembler.
• Our OS could use the C standard library.
• Our OS is running in S-mode and can access CSRs (Control and Status Registers) to find the cause and type of exceptions and other information.
• We define two areas of storage for a stack and free memory.  We allocate memory in 4096 byte pages.
• A process has its own stack and memory.  We move between processes using a context switch.
• RISC-V hardware converts virtual to physical addresses based on a two level page table.
• Switching to user mode protects the kernel and isolates processes from each other.  It is simple to implement.
• We can easily write a user shell to allow us to use basic functions

As a follow on I may investigate xv6, first as a QEMU VM, followed by running it on Nezha or VisionFIre2 hardware.
